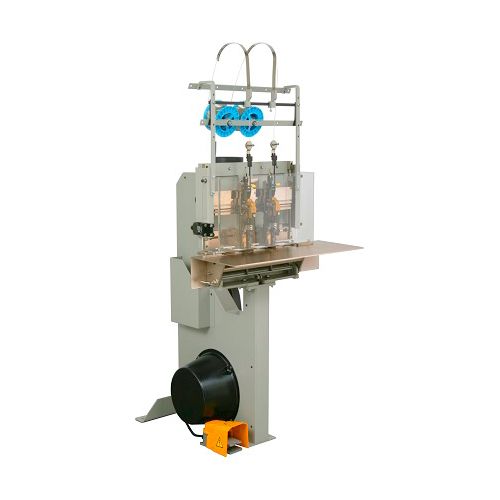

DeLuxe M17G8-AST 5/16" Stitcher w/ Two G8 Heads
9888.9956 NewCondition InStock

DeLuxe M17G8-AST 5/16" Stitcher w/ Two G8 Heads

Item #: 04DSM17G8AST
Brand: DeLuxe
  • Ideal for small pamphlets, checkbooks and sales-books.
  • A single adjustment sets the machine for thickness of work.
  • Speed: 215 stitches per minute
  • Throat Depth: 14"
  • Price Match Guarantee!
  • Oversize / Truck shipping
  • Brand New
  • In Stock

$9,889.00

SWIPE FOR MORE IMAGES
  • 0
  • 1

Overview

The DeLuxe M17G8-AST 5/16" Stitcher quickly and neatly stitch pamphlets, checkbooks, ticket books, and more. It is designed to staple both flat and saddle work ranging in thickness from 2 sheets to 5/16". The stitcher is equipped with two (2) heads standard, but can be operated with as many as ten 26D heads installed at one time. A single adjustment sets the machine for thickness of work. The M17 is footswitch operated and is belt driven by a 3/4 HP motor, making possible operating speeds up to 215 stitches per minute. The recommended wire sizes to be used on the M17 are as follows: 21 - 28 gauge round and 21x25 flat.

Specifications

Item #04DSM17G8AST
ManufacturerDeLuxe Stitcher Company, Inc
Manufacturer Part NumberM17G8 AST
Binding StyleSaddle Stitching
Operation: BindingElectric
Power Voltage110 V
Speed215 stitches per minute
Dimensions30" W x 35" D x 64" H
CertificationsCE Compliant
Manufacturer's Warranty90 Day Limited
Throat Depth14"
Product Weight (lbs)445
Shipping Weight (lbs)500

Description

The DeLuxe M17G8-AST 5/16" Stitcher quickly and neatly stitch pamphlets, checkbooks, ticket books, and more. It is designed to staple both flat and saddle work ranging in thickness from 2 sheets to 5/16". The stitcher is equipped with two (2) heads standard, but can be operated with as many as ten 26D heads installed at one time. A single adjustment sets the machine for thickness of work. The M17 is footswitch operated and is belt driven by a 3/4 HP motor, making possible operating speeds up to 215 stitches per minute. The recommended wire sizes to be used on the M17 are as follows: 21 - 28 gauge round and 21x25 flat.

Features:

  • Ideal for small pamphlets, checkbooks and sales-books.
  • A single adjustment sets the machine for thickness of work.
  • Capacity: From 2 sheets to 5/16"
  • Wire Sizes: 21 - 28 round and 21x25 flat
  • Clinch: Moveable clincher for flat stitching
  • Table: 33" wide heavy duty
  • Throat: 14" throat for flat and saddle work
  • Speed: 215 stitches per minute
  • Floor Space Required: 33" x 30"
  • Manufacturer's Warranty: 90 Days

Note: M17 must be secured to the floor to meet CE stability Requirements
