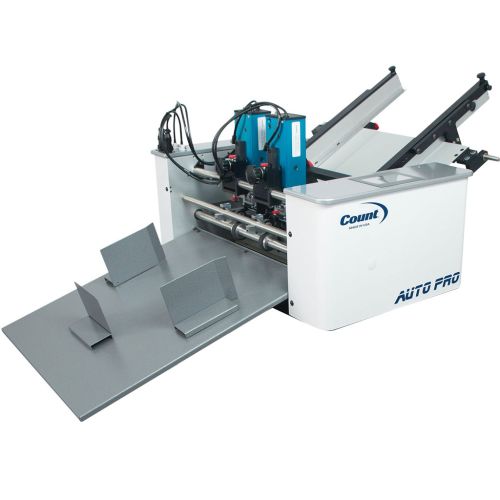

Count™ AutoPro Numbering and Perforating Machine with 2 Pneumatic Numbering Heads
- 0
- 1
- 2
- 3
- 4
- 5
Overview
The COUNT™ AutoPro numbering and perforating system uses easy-to-navigate touchscreen controls that offer quick job setup and efficient production speeds up to 12,000 sheets per hour, depending on the number of functions per sheet. It features a reliable bottom-load friction feeding system and a batch/total sheet counter to keep track of your job progress. Plus patented self-inking cartridges that ensure your production runs at peak efficiency. You may use the 2 included pneumatic heads to number up to 12 times per sheet. You can add numbers virtually anywhere on a sheet from the leading edge and up to as close as 1mm of the previous number. This system also has crash number up to 10-part carbonless forms. Numbering, perforating, and micro-perforating of your sheets is simple, fast, and accurate when you buy the Count AutoPro system online.
Specifications
Item # | 04CMAPPIIP |
---|---|
Manufacturer | Count Machinery |
Manufacturer Part Number | APT2 |
Operation | Electric |
Feed Type | Friction |
Sheet Counter | Yes, Total and Batch |
Multi-Part Corms | Yes, Crash Number Carbonless 10-Part Forms |
Impression Size | 3/16 x 3/32 |
Numbering Speed | 8,500 Sheets per hour ¹ |
Numbering Locations | 12 per Sheet (per Head); to 1mm from Previous Number |
Perf Speed | 12,000 Sheets per hour ¹ |
Perf Locations | 4 per Sheet |
Paper Weight | 60-360gsm |
Sheet Size | 6" W x 4.5" H to 18" W x 24" H |
Included Supplies & Accessories | 2 Pneumatic Numbering Heads (Gothic Font, Reverse, 7 Digits, 2 Drop Zeros) 1 Perforating Wheel (33 Tooth/9 per Inch) 3 Red Inks 3 Black Inks |
Optional Accessories (Sold Separately) | Pneumatic Numbering Head (Gothic Font, Reverse, 7 Digits, 2 Drop Zeros) Count™ NumberPro Stand 18-Tooth Perforating Wheel (5 Perfs per Inch) 33-Tooth Perforating Wheel (9 Perfs per Inch) 45-Tooth Perforating Wheel (12 Perfs per Inch) 96-Tooth Micro-Perforating Wheel (26 Perfs per Inch) 185-Tooth Micro-Perforating Wheel (96 Perfs per Inch) |
Electrical | 115V, 60Hz, 20A |
Manufacturer's Warranty | 3 Year Limited Manufacturer’s Warranty |
Country of Manufacture | Made in USA |
Dimensions | 44" W x 32" D x 27" H |
Weight | 200 lbs. |
Shipping Weight | 250 lbs. |
Shipping Method | Freight Truck (Qualifies for Free Shipping*) |
Description
The COUNT™ AutoPro is the solution for numbering and perforating when durability and ease-of-use are critical. This system is designed with pneumatic heads (two included) so you may adjust the pressure of the head and have more control over the striking process. This means the AutoPro is the machine that is most capable of consistency and a long head life.
This system is also a versatile choice, offering numbering of single sheets, crash numbering up to 10-part carbonless forms, perforating, or micro-perforating. The AutoPro also features patented self-inking disposable ink cartridges that require no re-inking, keeping your facility efficient and moving forward. It also features touchscreen programming that lets you number, perforate, and micro-perforate with impressive speed and accuracy. It features a reliable bottom-load friction feeding system and a batch/total sheet counter to keep track of your job progress.
Key Features & Benefits
- Easily program to number or perforate, individually or at the same time.
- Offers a reliable bottom friction paper feed system.
- Includes a sheet counter (for both batch and total sheet counting)
- Includes two reliable pneumatic, Gothic wheel reverse numbering heads–with 7 digits, 4 drop zeros, and multiple repeats.
- Add numbers virtually anywhere on a sheet–from the lead edge, place numbers within 1 mm of the previous number.
- Number single sheets or crash number up to a 10-parts carbonless form.
- Designed for maximum safety and easily operated by any employee.
- Choice of black or red ink, in patented self-inking disposable cartridges (no re-inking required) for approx. 25,000 impressions per cartridge.
- User-friendly touch screen for easy set up and control of the machine.
- Optional support stand available for easy mobility.
¹ Will vary depending on job settings; hits per sheet, sheet size, functions selected, etc.
The Count Auto-Pro Touch offers a compact, fast, easy to use machine that does Numbering, Perforating and Scoring, it provides flexibility for a wide range of applications. It's ideal for shops doing a multitude of jobs and who require automatic feeding. This bottom feed friction fed 18" wide unit is designed to do high-quality numbering, perforating, and scoring and optional micro-perfing and is easily operated by anyone in your shop.
The Auto-Pro Touch offers a new touch screen that makes setups fast and easy. Based on the popular AutoPro Plus, the new touch screen is icon based making set ups fast and easy. The sleek design and takes up little space on your counter-top and is also offered with an optional machine stand.
Features:
- User friendly, icon based touch screen microprocessor controller guides you through set-ups step-by-step.
- The self-fanning automatic bottom feeder has been engineered for continuous loading without stopping for maximum production, and because it is bottom fed, any job that has to be run back through the machine a second time will maintain the proper number sequence.
- The feed rails offer micro-lateral adjustment to keep the alignment of paper for a straight perf and score every time. The caliper paper adjustment is easily set to feed single sheets or multiple part carbonless, even on the open edge.
- The numbering system consists of two electronically fired numbering heads, which are independently controlled by the microprocessor.
- Up to 20 numbering strikes per sheet can be accomplished, with number placement anywhere on the sheet, including the upper gripper edge. The standard numbering head is a 7 digit gothic, reverse with 5 repeat sequences, and has an adjustment to setting the amount of impact pressure on various types of stock.
- Crash print up through a 10 part carbonless form- other numbering styles and No letterwheels are available at additional cost.
- Perforating and scoring is accomplished on the main roller., before the numbering heads, for maximum control of the sheet.
- A variety of perf blade styles available, including a microperf blade for laser perforating.
Additional Options Available:
- Standard Or Heavy duty wheel set
- Electric or Pnuematic Drive heads
- Standard or Strike Perf
- Ink jet Attachment for Barcodes, Text, Counters, and Variable Data
- Machine Stand
- Choice of 3 standard perf styles 5, 9, or 12 Cuts per inch
- Choice of 3 Micro perf styles 96 teeth, 185 teeth or 185 teeth deep cut
