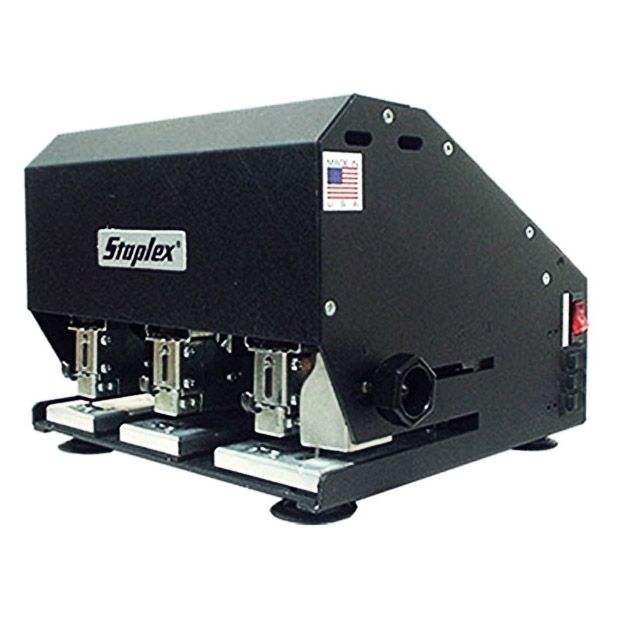

Staplex® S-630NHL Dual Capacity Triple Header Commercial Electric Stapler
- 0
- 1
- 2
Overview
Drive three staples at the same time with the Staplex® S-630NHL commercial-grade electrical stapler. Made in the USA to top-quality standards, the S-620NHL trip-headed stapler will staple through up to 40 sheets* at a time. It featured fully adjustable center distances between each of the three heads from 2" to 3‑5/8" when using all three, or from 2" to 7-1/4" apart when using just the outer two heads. This premium-quality stapler is designed for commercial/industrial stapling and offers super speedy finishing for many packaging applications. An integrated hi-lo switch lets you adjust the staple impact pressure, and independent control for each individual head lets you use this as a triple-head, double-head, or single head stapler. You can set staples as deep as 4-1/2" into your items, making the S-630NHL versatile enough to handle documents, reports, policies, header cards, and more. Buy the Staplex® S-630NHL 3-head electric stapler online at Binding101 today, and add versatility and convenience to your workroom.
- Ideal User: Commercial/ industrial
- Compatible Staples: Staplex Type DS 1/4" High-Speed Staples (Up to 25 Sheets*) & Staplex Type LL Long-Leg Saples (For 16 to 40 Sheets*)
- Optional Accessories (Not Included): 63N-107 Footswitch for Hands-Free Activation, 63N-BS Adjustable Backstop Set (Left & Right)
Specifications
| Item # | 04STXS630NHL |
|---|---|
| Manufacturer | Staplex® |
| Manufacturer Part Number | S-630NHL |
| Binding Style | Stapling |
| Capacity* | 40 Sheets (20 lb. bond; depends on staples used) |
| Compatible Staples | Staplex Type DS 1/4" High-Speed Staples (Up to 25 Sheets*) Staplex Type LL 9/32" Long-Leg High-Speed Saples (For 16 to 40 Sheets*) |
| Throat Depth | Adjustable Up to 4-1/2" |
| Distance Between Staples | From 2" through 7-1/4" (Using Outer Heads Only) From 2" to 3-5/8" (Using All Heads) |
| Power Voltage | 110-125 V, 50-60 Hz, AC |
| Dimensions | 10" W 9-3/4" D x 8" H |
| Manufacturer's Warranty | 90 Day Limited Manufacturer's Warranty |
| Product Weight | 29 lbs. |
| Shipping Weight | 30 lbs. |
Description
The Staplex® S-620NHL is an electric triple-headed electric stapling machine that will automatically staple through up to 40 sheets* of paper. It is designed for commercial/ industrial stapling. It can be re-loaded in seconds with the quick, pop-out front loading mechanism. The three heads automatically drive three staples simultaneously for unbeatable efficiency. An adjustable center allows the distance between the staples to be as narrow as 2" or as wide as 7.25" using the outer heads, or as wide as 3-1/4" using all three heads. Get evenly spaced staples for every job. With an adjustable staple set depth of up to 4-1/4", you have more flexibility to get your items stapled exactly how you want them. The "Hi-Low" switch allows you to adjust stapling impact so you can get the perfect pressure for each job, depending on your materials.
Key Features:
- Drives three staples at once automatically when work is inserted !
- Fully adjustable center distances between each staple from 2" (5.1 cm) to 3‑5/8" (9.2 cm), up to 7.25" (18.4 cm) outer distance
- Designed for commercial/ industrial stapling
- Super speedy for many stapling and packaging applications!
- "Hi-Low" switch to adjust stapling impact
- Independent ON/OFF switch for each stapling module to operate also as a double head or single head stapler
- Adjustable depth to 4‑1/4" (10.8 cm)
- Uses Staplex Type DS 1/4 " or Type LL Long Leg High Speed Staples
- Staples 2-40 sheets of 20-lb. paper or equivalent
- The ultimate for neatness and productivity
- Excellent for reports, policies, header cards
- Independent ON/OFF switch for each of the 3 stapling modules
- Footswitch activated, Dual Capacity (for up to 40 sheets of 20-lb. paper) models also available
- Made in U.S.A.
- Completely portable. No mounting required.
*Based on 20 lb. bond copy paper; will vary depending on paper stock used. Will vary depending on staples used.
