James Burn DocuPunch® PLUS Automatic Punch
28730 NewCondition InStock

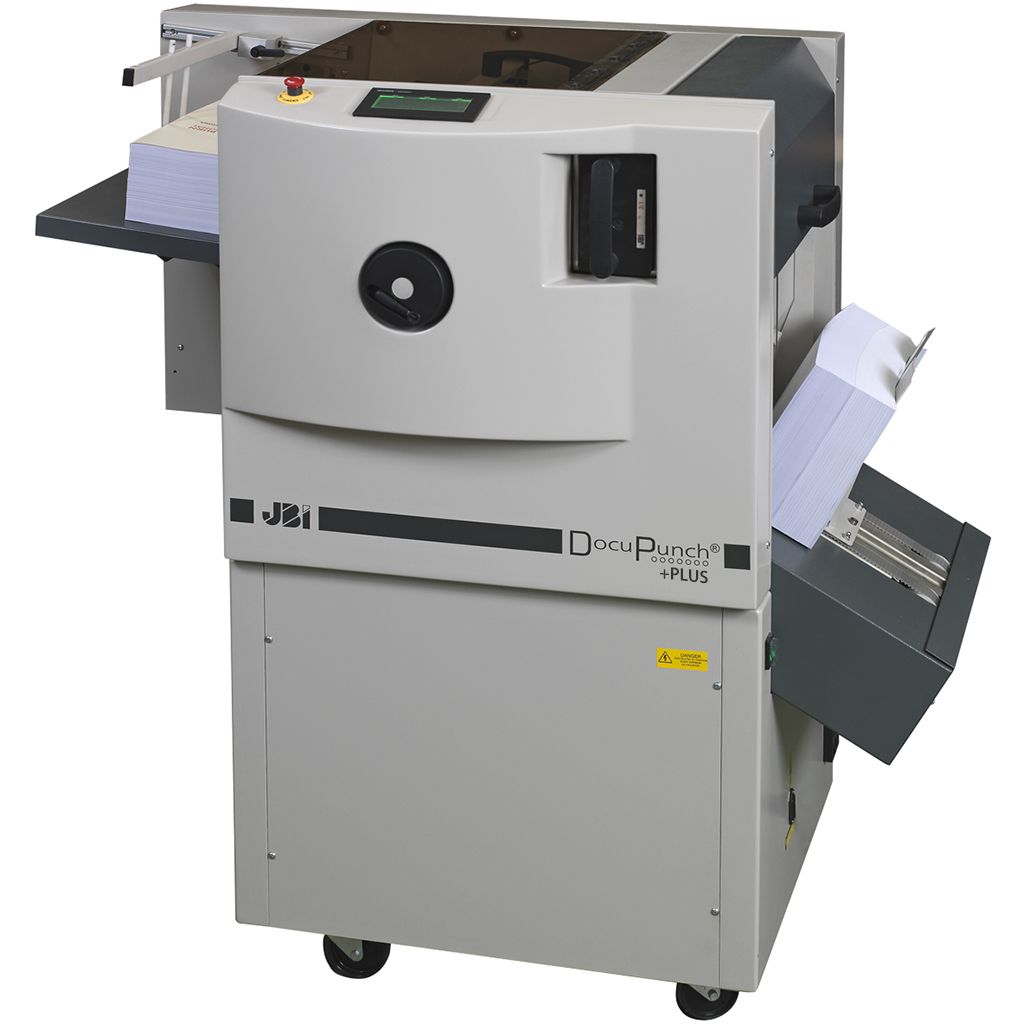

James Burn DocuPunch® PLUS Automatic Punch

Item #: 04DOCUPUNCH
Brand: James Burn
FAQ: 3 Questions, 3 Answers
  • Running speeds of up to 76,500 sheets per hour with clean, perfect holes for finishing
  • Three adjustable cycle speeds, including 50, 60, and 75 cycles per minute
  • Feed Table Capacity: 5 Reams (20 lb. Bond Paper)
  • Pick Thickness: Adjustable from 0.4 to 1.0 mm
Experts are standing by Click or Call (866) 537-2244
  • 85+ Years Experience
  • Oversize / Truck shipping
  • Brand New
  • In Stock

$28,730.00

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
video

Overview

The new and improved James Burn DocuPunch® PLUS automatic punching machine is the latest generation of the James Burn line of industrial binding machinery. It is as simple to use as a standard photocopier machine, which means that no special training is needed for your operators, making it easy to integrate into more versatile environments and departments. It features hands-free operation with setup that can be completed in under 1 minute using the LCD touch screen controls. The DocuPunch® binding punch machine is an impressive machine that has adjustable speed settings, with the fastest setting making it the fastest machine in its mid-volume automatic punching class. It was designed with the print on-demand market in mind, so your operators can quickly set up the machine, press start, and walk away. Installing and changing the punching die for different binding styles can be done in seconds, and a convenient storage hatch holds up to 3 dies for quick-access. Plus, the dies can be sharpened with our express die sharpening service.
For more features and valuable information, check out our full product description below, and be sure to take a look at the specifications and even compare them to other machinery so you can make the best buying decision. If you have any questions, or are ready to speak to our James Burn experts, call (866) 537-2244 or email info@buy101.com.

Specifications

Item #04DOCUPUNCH
ManufacturerJames Burn
Manufacturer Part Number04DOCUPUNCH
Suggested UserIndustrial
Binding StyleMultiple Binding Styles
Operation: PunchingElectric
Compatible Supplies & AccessoriesDocuPunch® PLUS Dies
Power Voltage110v Single Phase 60 Hz
CastorsYes; Lockable
Dimensions51" W x 28" D x 46" H
Manufacturer's Warranty90 Days Labor, 1 Year Parts (Defects Only) Limited Manufacturer's Warranty
Punch & Bind CapabilityPunch Only
Setup TimeLess than 1 Minute
Die Change TimeA Few Seconds
Paper Size5 ½" x 5 ½" up to 13" x 12"
Accepted Paper TypeFrom 16 lb. Bond to 110 lb. Index
Feed Table Capacity5 Reams (20 lb. Bond Paper)
Selectable Speeds50, 60, or 75 Cycles per Minute
Speed*Up to 76,500 Sheets per Hour
Sheet PickupTop of Pile Positive Sheet Pickup
Pick ThicknessAdjustable from 0.4 to 1.0 mm
Control PanelDigital LCD Touch Pad
Control Panel NotificationsDie Needs Lubricating, Die Needs Sharpening, Chip Bin Full
Jogger3-Sided Jogger
Die Sharpening AvailableYes, Express Die Sharpening Service is Available
Disengageable Die PinsYes (For Common Paper Sizes, Varies by Die)
Die / Tool StorageStorage Compartment Holds 3 Dies
Hands-Free OperationYes
Monthly Volume / Duty RatingUp to 1,000,000 Sheets per Month
Special Training RequiredNo Special Training Required
Product Weight (lbs)704
Shipping Weight (lbs)745
Shipping InformationThis item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.

Description

The James Burn DocuPunch® PLUS has been upgraded and is now known as the fastest, easiest, and most reliable mid-volume book binding punch in its class. It is a part of the latest generation of James Burn automatic punching equipment, and is as easy to use as any regular office copy machine or printer. The control panel is a touch screen LCD that quickly and simply walks you through setup, allowing you to calibrate the machine for your specific job in less than one minute. And the DocuPunch® die changing process is even faster, taking just seconds to switch from Wire-O, to plastic coil, to plastic comb, and so on. This simple working process means that your operators don’t need any special training, so you can place the machine and begin working very quickly.

The DocuPunch® PLUS is also on rolling and locking castors, which allows for smooth and easy mobility of the machine; this means you are not tied down to one strict location for the machine, as you can move it to wherever your operators need to be at a certain point in time. It was designed for accurate medium-level automatic punching of books of all kinds, on-demand, directly from your copier or printer (including mixed stock from 16 lb. bond to 110 lb. index). Positive sheet pickup pulls from the top of the pile and a three-sided jogger prepares the pages for perfect registration and perfectly placed holes, every time. The punched sheets are kept in perfect pre-collated order, making the finished pages on the exit tray easy to handle and move to the binding stage. It will also punch index tabs that have a ¼” inset on the ends and are pre-collated into the finished sets.

Cycle speed is adjustable with three different settings, including 50, 60, and 75 cycles per minute, which amounts to approximately 76,500 sheets per hour at the fastest setting. This makes it the fastest binding punch in it’s class of similar machines. The slower settings are usually used for mixed page punching, index tab punching, and other more unique sheets. The adjustments mean you can choose the setting that suits your job perfectly and provides you with the best results. The pick thickness is adjustable from 0.4mm to 1mm, making for even more fine tuning, so you can produce maximum production output with trouble-free operation on various paper types. Even while the machine is in the middle of a job, you can make adjustments from the touch screen.

Maintenance of the DocuPunch® PLUS is simple, as it will tell you when it is time to oil your die, sharpen your die, and when the extra large chip bin is full and needs to be emptied. This removes the question of when and what preventative and general maintenance needs to be performed on the machine. The footprint is incredibly small for the power that this industrial binding punch packs; it will fit well into even the tightest space restrictions, and is easily moved as-needed on the heavy duty locking wheels.

DocuPunch® PLUS Dies Available:

Click here to shop the variety of DocuPunch® dies available.
   • Spiral Binding / Plastic Coil
   • Wire-O® Twin-Loop Wire Bindings
   • Plastic Comb
   • Velo Binding
   • Three-Hole for Ring Binders
   • Custom-made die to your exact specifications

Features and Benefits:

   • Running speeds of up to 76,500 sheets per hour with clean, perfect holes for finishing
   • Three adjustable cycle speeds, including 50, 60, and 75 cycles per minute
   • Adjustable picking thickness from 0.4mm to 1mm for various paper stocks
   • LCD touch screen control panel walks you through set up and informs you of basic maintenance needs
   • Hands-free operation allows you to load the paper, setup the job, press start, and walk away
   • There is no special training required for your operators; it’s as easy to use as a standard office copier or printer
   • Positive sheet pickup with beak and a three-sided jogger ensures perfect registration of your pages for perfectly finished punched pages
   • Automatic stopping with the built-in facilities that help avoid paper jams and increase safety for your operators
   • All operations and adjustments are simple and quick-to-perform, including die changes
   • Storage compartment holds up to three dies / tools for quick-access
   • Punches a wide variety of paper stocks, covers, and tabbed sheets from 5 ½" x 5 ½" up to 13" x 12", keeping them in perfect collated order
   • Compact footprint to take up little space on the operating floor, without compromising quality or power
   • Lockable heavy duty castor wheels for mobility and stability

The James Burn DocuPunch® PLUS is an extremely versatile and time-saving binding punch that works perfectly for pre-collated books, presentations of all kinds, reports, tabbed sheets, and mixed page documents; even those with standard paper, acetate, and more. It makes quick and easy work of your diverse binding punch needs, making it ideal for central reproduction departments (repro graphics and more) and digital, on-demand printers where efficiency and productivity are essential. Ready to buy the DocuPunch® PLUS automatic punch? Call our industry experts at (866) 537-2244 or email info@buy101.com.

*May vary depending on sheet size, paper stock, operator, and other factors.

Videos

James Burn DocuPunch® PLUS Automatic Punching Machine - Main Video Overview

Transcript: The James Burn DocuPunch® PLUS is the latest generation of automatic punch from the James Burn line. It offers hands-free punching that reduces labor costs, offering a very fast return on investment. Designed with the print-on-demand market in mind, just load the paper, push the start button, and walk away. The hands-free operation allows your operator to perform other tasks while the punch does the work.

The James Burn DocuPunch® PLUS features a top-pile positive sheet pickup and three-sided...
Read More
The James Burn DocuPunch® PLUS is the latest generation of automatic punch from the James Burn line. It offers hands-free punching that reduces labor costs, offering a very fast return on investment. Designed with the print-on-demand market in mind, just load the paper, push the start button, and walk away. The hands-free operation allows your operator to perform other tasks while the punch does the work.

The James Burn DocuPunch® PLUS features a top-pile positive sheet pickup and three-sided jogging into the die for accurate punching registration. The James Burn DocuPunch® PLUS handles sheet sizes from 5 ½" x 5 ½" up to 13" x 12". The punched sheets are kept in perfect, pre-collated order. It will also punch index tabs that are pre-collated into the finished sets.

The latest innovation to the James Burn DocuPunch® PLUS is the addition of a digital touchpad control that is icon-based for simple operation. The James Burn DocuPunch® PLUS has three cycle speeds of 50, 60, or 75 cycles per minute, and also an adjustable pick thickness from 0.4 to 1mm. Providing speeds of up to 76,500 sheets per hour for maximum production on a wide range of stocks with trouble-free operation.

The LCD controls will also alert the operator when the die needs to be lubricated or sharpened, and when the chip bin is full.

The James Burn DocuPunch® PLUS offers super fast die changeover times. There is a wide assortment of dies available, and custom dies can be manufactured to your exact specifications. Dies also include pull pins for standard paper configurations.

The James Burn DocuPunch® PLUS is a document finishing solution that is perfect for central reproduction departments, digital on-demand printers, or anywhere efficiency and productivity are a must.

Visit Binding101 online at https://www.binding101.com/docupunch to learn more about the premium DocuPunch® PLUS punch machine, or call (866)537-2244 to speak with a James Burn trained expert.

James Burn DocuPunch® PLUS Operation & Setup Video

Transcript: Power on the machine. The machine can’t be operated without a punching die installed. If no tool is in the machine a notification will be listed, "check tool presence". Lower the feed tray using icon on the touch screen and load paper onto the feed table. On the front of the machine there is a recessed crank for the side guide hand wheel. Open the handle and turn to open or close the side guides. This adjusts the side guides on the feed tray, the joggers in the punching area, and the reception...Read More
Power on the machine. The machine can’t be operated without a punching die installed. If no tool is in the machine a notification will be listed, "check tool presence". Lower the feed tray using icon on the touch screen and load paper onto the feed table. On the front of the machine there is a recessed crank for the side guide hand wheel. Open the handle and turn to open or close the side guides. This adjusts the side guides on the feed tray, the joggers in the punching area, and the reception tray side guides. The guides in the paper path accommodate the paper width being run. Slide the paper stack in between the side guides and adjust to the paper width.

Push the “run” icon on the control panel and hold until the feed table begins to rise, and release. While the stack is rising, release the black locking handle and adjust the pile back stop assembly. The white pins should be snug against the back of the paper stock. Lock the black handle into position. The paper stack will move to its top position, and the pick mechanism on the machine will begin to cycle.

When the machine begins to cycle, hold down the “adjust” icon until the machine begins to cycle in the slow operation mode. The machine will pull one lift of paper into the punching area and stop. The side joggers and foot stops will move into position and stop so the operator can position each to the paper size being run. Using the hand wheel on the front of the machine, adjust the side joggers. Adjust the foot stops on the back side of the lift of paper. Loosen the locking black handle on the foot stops and slide them so they are touching the back side of the lift of paper, and lock the handle down. Push and hold the “run” icon on the control panel until the lift of paper has been punched and moves into the reception bin, and release button. Inspect the holes to verify they are centered on the paper.

There are two notches built into the die. These allow the die to be positioned into the machine so the holes are centered on the sheet of paper. If the holes are not centered, open the hinged panel on the side of the machine, pull the die latch out, and slide the die forward to the second notch position on the die.

With the back cover open, you have access to the finger pulls on the die that correspond to the sheet size being punched. Pull out the finger pulls to the correct sheet size being run, close the die-access panel over the reception tray, hit the “run icon” on the control panel to start the machine, allowing the machine to pull a lift of paper and run. Hit the “stop” icon and remove the lift of paper from the reception bin to verify correct alignment of the punched holes in the paper.

Once job is approved, hit the “run” icon to complete the job.

Visit Binding101 online at https://www.binding101.com/docupunch to learn more about the premium DocuPunch® PLUS punch machine, or call (866)537-2244 to speak with a James Burn trained expert.

James Burn DocuPunch® PLUS FAQs with Bob Cooke

Transcript: Question: Will it work well with statically charged paper stocks?

Answer: Because the DocuPunch® PLUS feeds off of the top of the stack, you have less problems with static. When feeding off the bottom it can increase the amount of static, because you have the pressure of the paper on top of as you are drawing the paper across. But pulling from the top helps that problem. Plus, on the exit side we have an anti-static brush, so as the paper passes by, it pulls the static out of the paper.
_____...
Read More
Question: Will it work well with statically charged paper stocks?

Answer: Because the DocuPunch® PLUS feeds off of the top of the stack, you have less problems with static. When feeding off the bottom it can increase the amount of static, because you have the pressure of the paper on top of as you are drawing the paper across. But pulling from the top helps that problem. Plus, on the exit side we have an anti-static brush, so as the paper passes by, it pulls the static out of the paper.
______________________
Question: When would I use the different speed cycles?

Answer: This is the fastest machine cycle-wise of all machines in the same category, with the top speed of 75 cycles per minute. We have made it adjustable for different kinds of paper stocks, for instance if you are doing tabs collated in. For applications like this, you want to turn it down to the slower speeds. The same goes for if you have thick stocks, or mixed stock with covers like acetate.
______________________
Question: How do I setup the machine and perform change-overs?

Answer: There are two notches in the die, one is for even number of holes and one is for odd. Slide the die in and allow the lever to go into the correct notch for the size of paper you are doing. Pull the side handle out and turn it to adjust the paper guides on the entry pile, the side joggers, and the guide sin the reception. Then all you do is hit the button to bring one lift in. It will stop as it feeds into the die. Adjust your footstops to bring the paper up against the head stops. Cycle that through and it will come out in the reception. Take it out, fold your sheet in half, and make sure that the holes line up all the way across. Once your test sheet is approved, run the entire job.
______________________
Question: How do I change the die to punch a different pattern?

Answer: Push the tool change button right on the screen, open the back cover, pull the lever, and slide the die out by the handle.
______________________
Question: Can the dies and punch pins be sharpened?

Answer: Yes, dies can be sharpened with our Express Die Sharpening service. The screen will notify the operator when die sharpening is recommended (as well as when die lubrication is needed). It tracks the number of cycles for each die; all the operator has to do is indicate to the machine what die is inserted to keep track of the cycles.

Product Reviews

Write Your Own Review
You're reviewing:James Burn DocuPunch® PLUS Automatic Punch
Your Rating

Frequent Asked Questions

Q
When would I use the slower cycle speed settings?
Asked by Customer
A

The slower cycle speed settings are ideal for when you are punching mixed sheets with different paper weights, as well as when punching tabs. The fastest speed setting of 75 cycles per minute means that the DocuPunch® is actually the fastest machine in its class. The ability to slow down the speed to 50 or 60 cycles for different paper stocks and job requirements makes it very versatile.

Answer by Binding101
Q
Can the DocuPunch® Dies be sharpened?
Asked by Customer
A

Yes! We offer an "express die sharpening service" that involves disassembling the die and sharpening not just the pins, but also the punch plate to ensure the best and longest-lasting results, re-assembling it, and mailing the die back to you. Click here to learn about the express die sharpening service and request sharpening of your DocuPunch® die today.

Answer by Binding101
Q
The paper stock I use has a lot of static charge...will the DocuPunch® work for me?
Asked by Customer
A

Because this machine has top-sheet feeding and an anti-static brush at the exit, it DOES have the ability to work well with even high-static sheets (such as acetate covers).

Answer by Binding101
