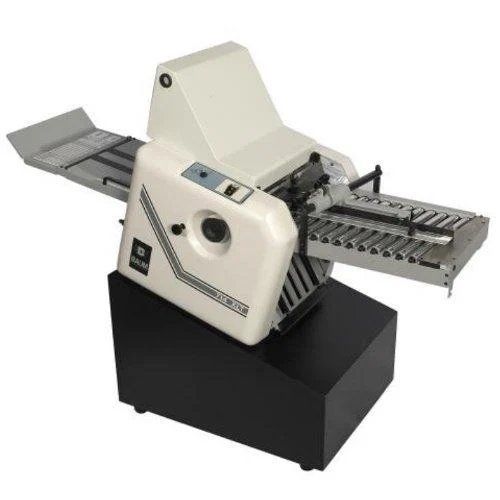

Baum 714XLT 8-Page Right Angle Air-Feed Paper Folder (Urethane Roller) w/ Stand
- 0
- 1
Overview
The Baum 714XLT 8-Page Right Angle Air-Feed Paper Folder is the perfect companion to your Baum 714XLT and other Baum 714 models.
Specifications
Item # | 04BAUM714XLT8PG |
---|---|
Manufacturer | Baum |
Manufacturer Part Number | 714RTANG |
Operation | Electric |
Right-Angle Fold Roll Speed | 5,000"/minute |
Minimum Sheet Size | 3" x 5" |
Maximum Sheet Size Right Angle | 14" x 12.5" |
Maximum Size Fold (#1 or #2 plate) | 13.5" |
Minimum Size Fold | 2.25" |
Maximum Paper Weight | 65 lb cover |
Feeder Pile Height | 2" |
Fold Roll Diameter | 1.5" |
Fold Roll Material | Polyurethane or Combination Polyurethane/Steel |
Speed | Infinitely Variable |
Operating Voltage | 110 VAC - 60 Hz |
Power Consumption | 1500 watts |
Amperage (pump) | 13.6 amp |
Dimensions | 27"H x 49"L x 24.5"W |
Manufacturer's Warranty | 3 Year Warranty |
Product Weight (lbs) | 310 |
Shipping Weight (lbs) | 348 |
Shipping Information | This item ships via Truck (Common Carrier). |
Description
The Baum 714XLT 8-Page Right Angle Air-Feed Paper Folder is the perfect companion to your Baum 714XLT and other Baum 714 models.
It can be configured for either right-angle folding or in tandem for multiple parallel folds. An innovative pivoting idler roll design eliminates gap setting requirements. Easy-access slitter shafts allow changing attachments without removing the shafts. The 714XLT Right Angle features more effective stack removal for higher productivity, new positive drive cross-carrier design and “up & down” folding position capability.
Features
- Practical right angle folding system
- Ergonomic and easy to use control panel
- Right angle fold speed of up to 5000" per minute
- Suitable for paper of 3" x 5" and up to 14" x 20"
- Maximum size fold of #1 or #2 plate 13.5"
- Minimum size fold of 2.25"
- Can process stock of up to 65lb.
- Polyurethane fold rolls
- Gear-driven fold rolls
- Automatic fold roller tensioning
- Angular roll cross carrier
- Gear driven cross carrier rolls
- Easy Access slitter shafts
- Flow-Thru design
- Adjustable scoring assembly
- Sealed ball bearings
- Suitable for coated and glossy paper
- Perfect for laser-printed and high-speed copier paper
- Heavier stock may require pre-scoring
- Large stacker with up to 30% extra capacity
- Heavy-duty build
- Built in counter
- Folding and air adjustments
- Comes with stands
- Optional side covers for silent operation available separately
