Duplo 490 Pro 19 ³ /₁₀" Hydraulic Programmable Paper Cutter (Discontinued)
0 NewCondition OutOfStock

Duplo 490 Pro 19 ³ /₁₀" Hydraulic Programmable Paper Cutter (Discontinued)

We're sorry, but we no longer sell this item.

Below are a few alternative options that may be a great fit for your needs.

If not, please call us at (866) 537-2244 for personalized recommendations.

Item #: 04DUP490P
Brand: Duplo
  • Castors: No
  • Cutting Width: 19-3/10"
  • Cutter Capacity: 3" Thick Stack (About 750 Sheets)
  • Safety Features: Two-Hand Blade Activation / Safety Sensors
Call Us
Even though we no longer offer this item, we have a full catalog of products to suit your needs!
Please call us at (866) 537-2244 to find the perfect solution.
SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
video

Overview

Hydraulically powered and extremely rugged construction, the 490 Pro cutter by Duplo USA offers high performance and precision cutting for the on-demand market. Engineered to the highest quality, this Duplo cutter offers high speed cutting up to 19.29" (about 19 ³ /₁₀") wide and stacks up to 3" thick. Safety sensors keep your operators protected during use, ensuring no accidents and preventing cutting when objects are in the cutting field. In addition, the cutter is activated by dual buttons that require two-hands, ensuring no hand is left on the table. First, set your cutting specifications in the easy-to-use control panel. You can save up to 98 jobs in the memory with up to 49 different cuts per job. These saved jobs can be recalled by just pressing the "auto" button and entering the job number. The back gauge will automatically position itself before each cut, smoothly and quickly guiding your paper stack into the set position. Micro adjustments can be made to the back gauge setting by using the knob underneath the table. A light line illuminates precisely where the blade will cut, and the clamp to remove air between the sheets and ensure further accuracy is controlled by a hydraulic foot pedal on the front of the machine. The Duplo 490 pro cutter also has a manual mode so you can program individual cuts quickly. For a quick and easy cutting solution for your high-volume cutting needs with accuracy and safety in mind, buy the Duplo 490 pro hydraulic programmable paper cutter online today.

Specifications

Item # 04DUP490P
Manufacturer Duplo USA Corporation
Manufacturer Part Number 490PRO
Operating Method Hydraulic
Included Supplies & Accessories 1 Blade (Installed)
1 Cutting Stick (Installed)
Power Voltage 220 V, 60 Hz, Single Phase
Castors No
Dimensions 40.16" W x 45.28" D x 53.55" H
Manufacturer's Warranty 3 Year Limited Electric, Mechanical, Hydraulic
Size 19 ³/₁₀"
Cutting Width 19-3/10"
Cutter Capacity* 3" Thick Stack (About 750 Sheets)
Safety Features Two-Hand Blade Activation
Safety Sensors
Product Weight (lbs) 880
Shipping Weight (lbs) 1115
Shipping Information This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.

Description

The quality-engineered Duplo 490 Pro Hydraulic Paper Cutter ensures both precision and speed in a critical cutting process. This quick and easy cutting solution is reliable for meeting deadlines and offers pinpoint cutting accuracy to avoid expensive reprints. The 490 Pro Programable Hydraulic Cutter comes with an easy-to-read digital display to guide you through programming operations and cutting positions. Memory lets you store up to 72 cutting locations and 9 cutting jobs in the memory. Cutting sequences are conveniently stored and recalled at the touch of a button. Duplo's quality-engineered cutter guarantees complete satisfaction cut after cut.

The Duplo 490 Pro Hydraulic Paper Cutter uses state-of-the-art technology offering ultimate automation and able to withstand rigorous work flow demands. It features standard light emitting & receiving safety sensors on front cutting table and a special anti-friction surface aluminum alloy cutting table that requires no polish or waxing and will not rust over the cutter's life.

The Duplo 490 Pro Cutter features a power back gauge with manual back gauge line adjustment so you can get accurate cuts. The hydraulic soft clamp is foot pedal activated and is safe for use with delicate papers. The safety interlocked, illuminated cutting line shows you exactly where the blade will hit the paper, allowing you to line up your sheets perfectly.

Videos

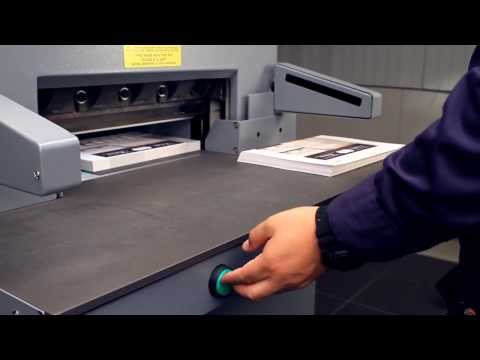

Duplo 490 Pro Hydraulic Programmable Paper Cutter Overview

Transcript: Watch this Duplo 490 Pro Hydraulic Programmable Paper Cutter video to learn about the powerful machine features and how this high-performance cutting machine with user friendly controls is an ideal solution for on-demand high-volume cutting needs.
Watch this Duplo 490 Pro Hydraulic Programmable Paper Cutter video to learn about the powerful machine features and how this high-performance cutting machine with user friendly controls is an ideal solution for on-demand high-volume cutting needs.
